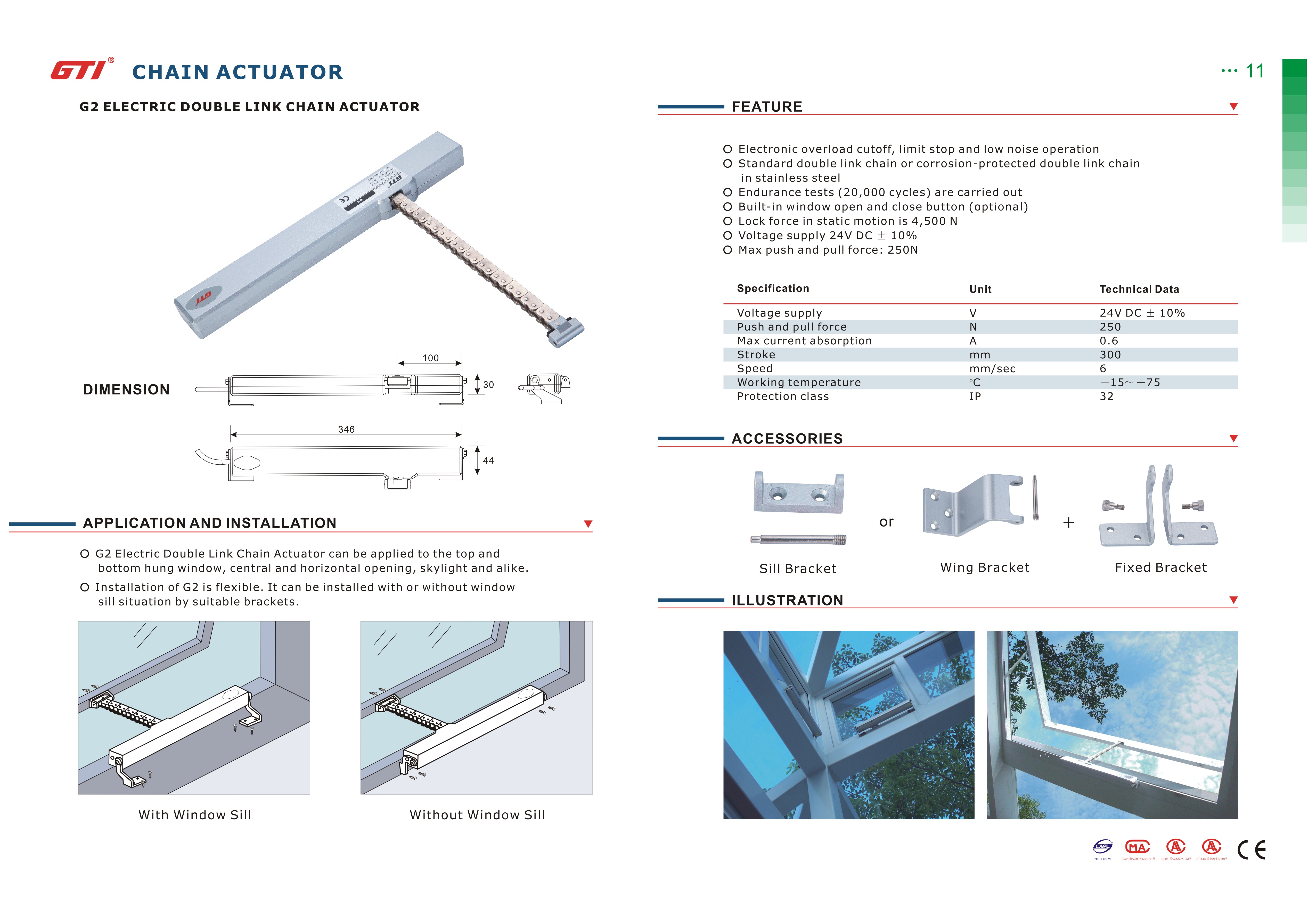

ELECTRIC DOUBLE LINK CHAIN ACTUATOR
G2
Main Features
- Electronic overload cutoff, limit stop and low noise operation
- Standard with Stainless chain
- There have the rebound function to mitigate the aluminum frame become deformed and to increase the adhesive tape life time
- Built-in window open and close button (optional)
- Voltage supply 24V DC ± 10%
- Endurance tests (50,000 cycles) are carried out
- Lock force in static motion is 4,500N
- Max push and pull force: 300N
|
Specification
|
Unit
|
Technical Data
|
| Voltage |
V
|
24 V DC ± 10%
|
| Push and pull force |
N
|
250/300
|
| Max current absorption |
A
|
0.6 / 0.7
|
| Stroke |
mm
|
300 / 500
|
| Speed |
mm/sec
|
6
|
| Working temperature |
ºC
|
-15 ~ +75
|
| Protection class |
IP
|
32
|
|
|
