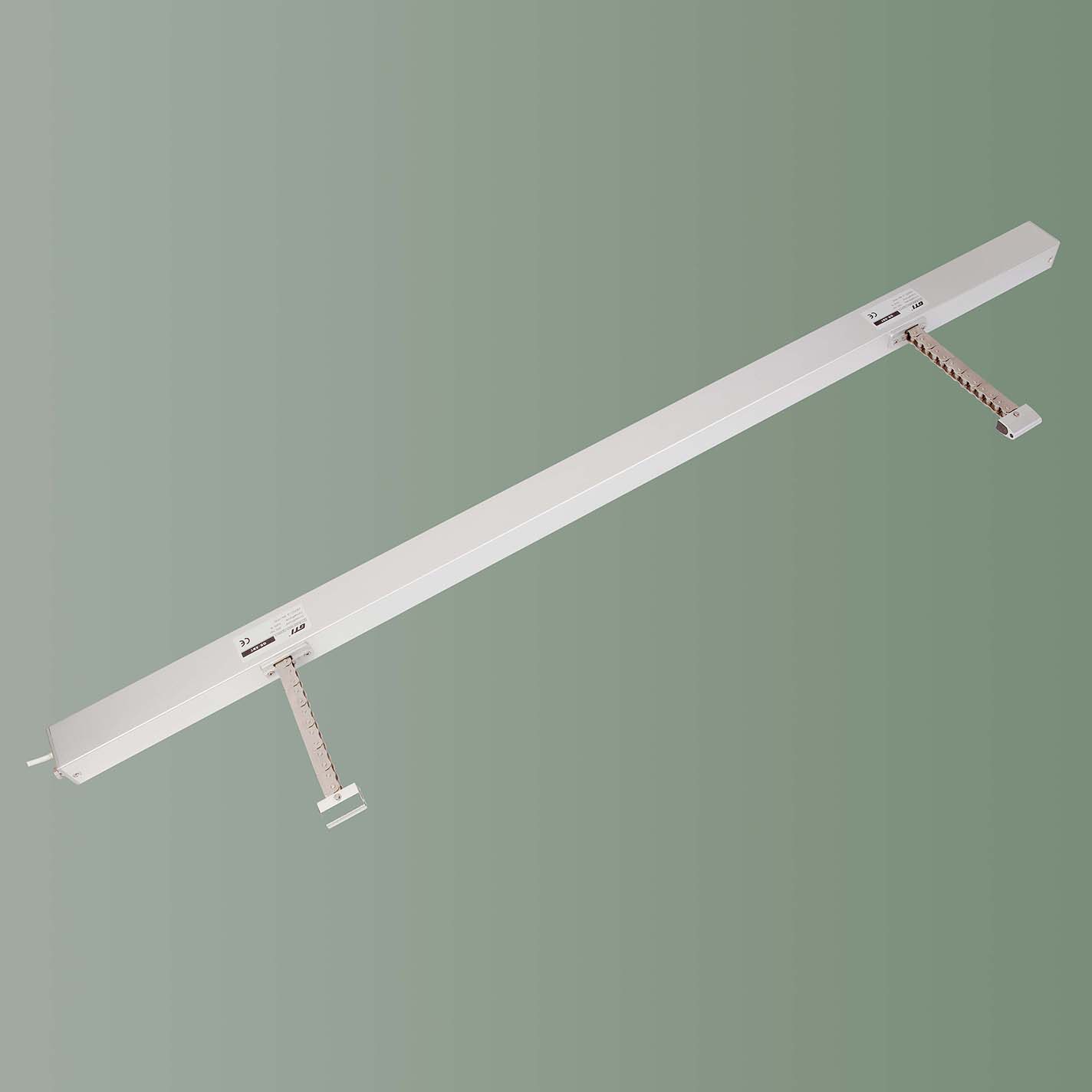

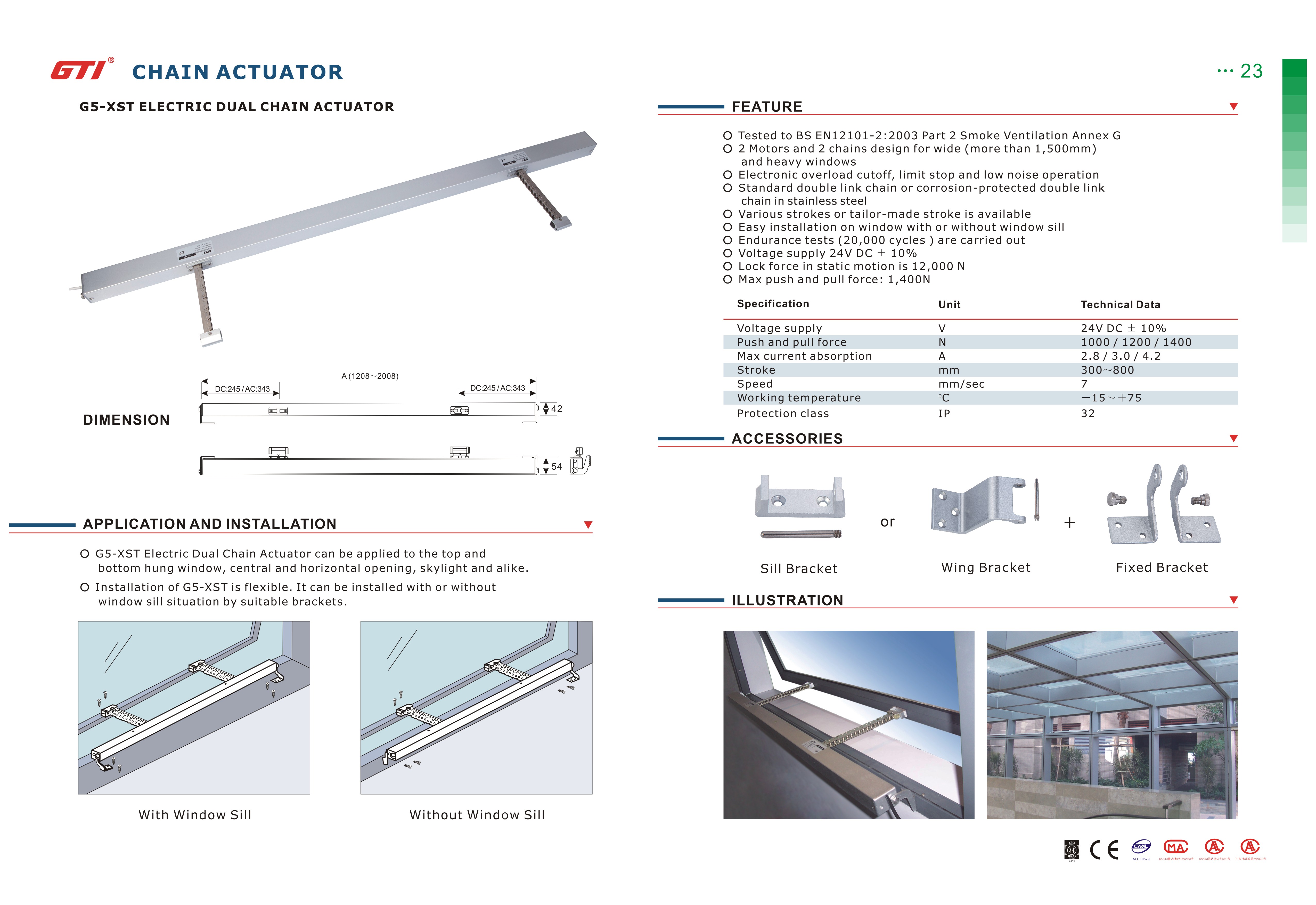

ELECTRIC DUAL CHAIN ACTUATOR
G5-XST
Main Features
- Tested to BS EN12101-2:2003 Part 2 Smoke Ventilation Annex G
- 2 Motors and 2 chains design for wide (more than 1,500mm) and heavy windows
- Electronic overload cutoff, limit stop and low noise operation
- Standard with Stainless chain
- There have the rebound function to mitigate the aluminum frame become deformed and to increase the adhesive tape life time
- Various strokes or tailor-made stroke is available
- Easy installation on window with or without window sill
- Voltage supply 24V DC ± 10%
- Endurance tests (50,000 cycles) are carried out
- Lock force in static motion is 12,000N
- Max push and pull force: 1,400N
|
Specification
|
Unit
|
Technical Data
|
| Voltage supply |
V
|
24 V DC ± 10%
|
| Push and pull force |
N
|
1000 / 1200 / 1400
|
| Max current absorption |
A
|
2.8 / 3.0 / 3.6
|
| Stroke |
mm
|
300 ~ 800
|
| Speed |
mm/sec
|
7
|
| Working temperature |
ºC
|
-15 ~ +75
|
| Protection class |
IP
|
55
|
|
|
