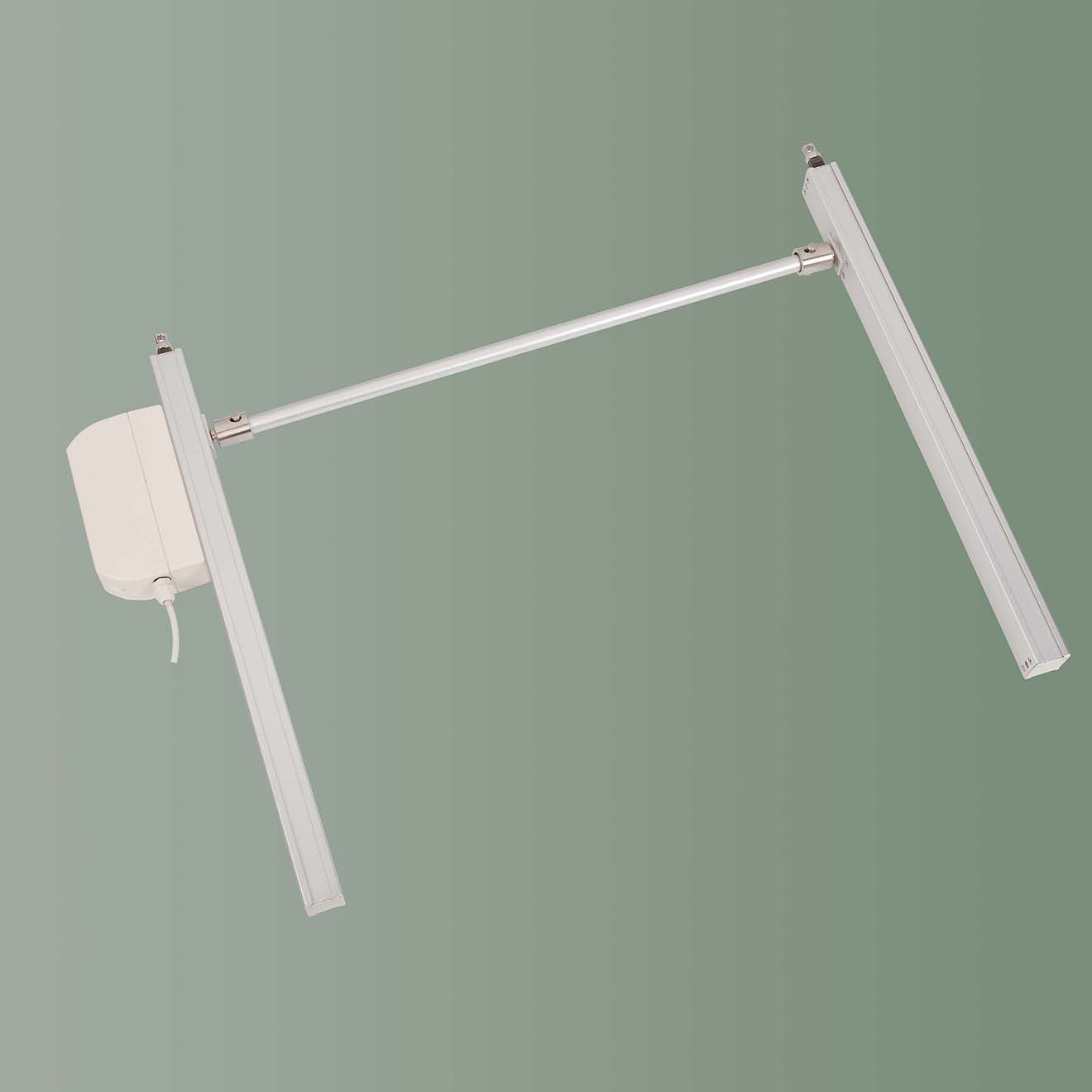

Electric Rack And Pinion Drive Tandem
TE368DN
Main Features
- Rack and pinion drive tandem design
- 1 Rack and pinon drive coupling with 1 slave unit
- Fixed and movable installation
- Fire resistance (24V DC version 30 minutes / 300 °C under Lab test)
- Various push force available
- Various stroke available, maximum 1,500 mm
- Standard with Stainless rack
- Endurance tests (20,000 cycles) are carried out
- Voltage supply 24V DC ± 10% / 230 V AC ± 10%
- Lock force in static motion is 2,500N
- Max push and pull force: 1,000N
- Protection class: IP65
|
Specification
|
Unit
|
Technical Data
|
| Voltage supply |
V
|
24 Volt DC ± 10%
|
| Push and pull force |
N
|
400 / 600 / 800
|
| Max current absorption |
A
|
0.70 / 0.90 / 1.10
|
| Stroke |
mm
|
350 ~ 1,500
|
| Speed |
mm/sec
|
8
|
| Working temperature |
ºC
|
-15 ~ +75
|
| Protection class |
IP
|
65
|
|
|
